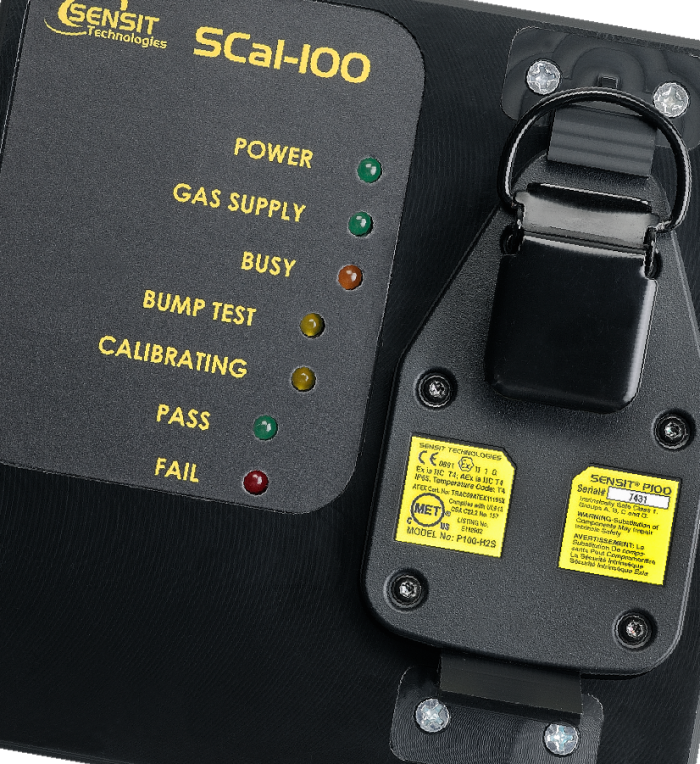

SCAL-P100 | FrontviewSCAL-P100 | Frontview

SCAL-100



SCAL-100 Calibration Station is the automatic bump and calibration station for SENSIT® P100 Personal Gas Monitors equipped with two-way communication. SCAL-100 is also used to upload data from the P100 event log.
Two versions are available
SCAL-100-D 360 Calibration Station
The Desktop version communicates with a computer via USB when using SCAL-D 360 Data Management Software application. SCAL-D 360 is sold separately with a multi-year license.
SCAL-100-N 360 Calibration Station
The Network version can communicate through the Ethernet connection when using SCAL-N 360 Data Management Software application. SCAL-N 360 is sold separately with a multi-year license.
Compatible with:
Request a Quote

Description

Design to Test/Calibrate SENSIT® P100 Monitors

Oxygen – O2
Carbon Monoxide – CO
Hydogen Sulfide – H2S
Hydrogen Cyanide – HCN
Nitrogen Dioxide – NO2
Sulfure Dioxide – SO2


Standard Features
Indicates Proper Gas Pressure
Automatic Operation when Instrument is Installed
Indication of Pass or Fail
RJ45 Intranet Connection / USB
Wall or Desk Mount
Compatible with Windows 7, 8, 8.1, 10
Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019


Reporting Features
Instrument Test Past Due
Instrument Failure Alerts
Monthly Compliance Report
Sensor Performance Data
Optional Networking System
SMARTLINK/ SMARTLINK 360

Compatible with
SCAL-D 360 (Desktop)
SCAL-N 360 (Network)
Data Management Software
